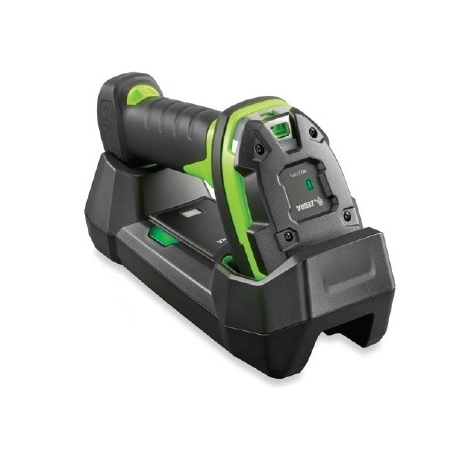

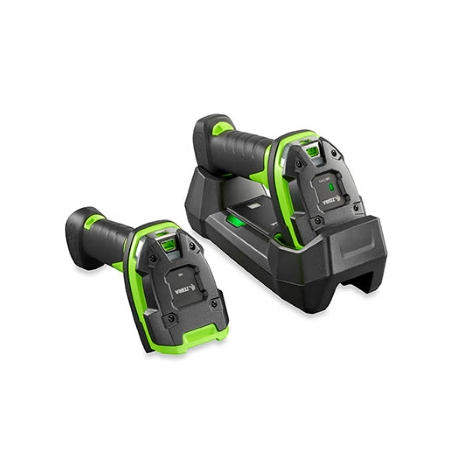

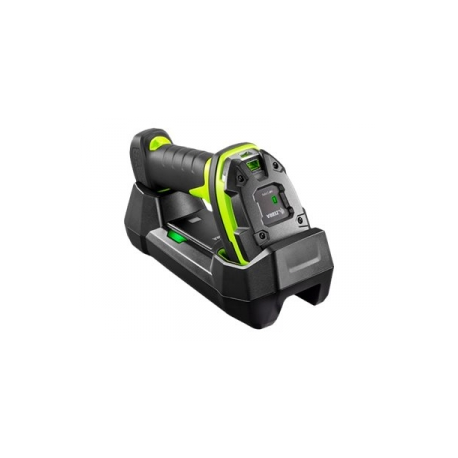

Zebra DS3678-ER - Barcode scanner - portable - 2D imager - decoded - keyboard wedge, RS-232, USB, Bluetooth 4.0
Zebra DS3678-ER - Barcode scanner - portable - 2D imager - decoded - keyboard wedge, RS-232, USB, Bluetooth 4.0
Manufacturer
•ZEBRA
Reference
•DS3678-ER3U42A2SVW
Article
•1338385
Intrastat
•84716070
Shipping weight
•1.662 kg
Manufacturer price
•1483.98 €
Total quantity in stocks
•2
Nearest delivery
•28.04.2026
Bluetooth scanner, industry, 2D, imager (extended range), FIPS, multi-interface (RS232, KBW, USB), IP67, incl.: cable (USB), power supply unit, charging/transmitter cradle, order separately: power cable, colour: black, green
Type
Barcode scanner - portable
Colour
Industrial green
Interface Type
Keyboard wedge, RS-232, USB, Bluetooth 4.0
Minimum Bar Width
3 mil
Scan Element Type
2D imager
Scan Mode
Single-pass
Skew (Degrees)
60
Pitch (Degrees)
60
Decode Capability
GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, TLC39, Micro QR code, China Han Xin Code
TTL Decoding
Decoded
Connectivity Technology
Wireless, wired
OK Notification
Beeper, LED indicator, vibration
Features
Rugged
Wireless Connectivity
Bluetooth 4.0 LE
Interfaces
1 x USB ¦ 1 x keyboard wedge ¦ 1 x RS-232
Included Accessories
Cradle
Cables Included
1 x USB cable - external
Compliant Standards
UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B
Power Device
Power adapter
Battery
1 x Lithium Ion
Width
7.7 cm
Depth
14.3 cm
Height
18.5 cm
Weight
436 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
2.4 m to concrete
