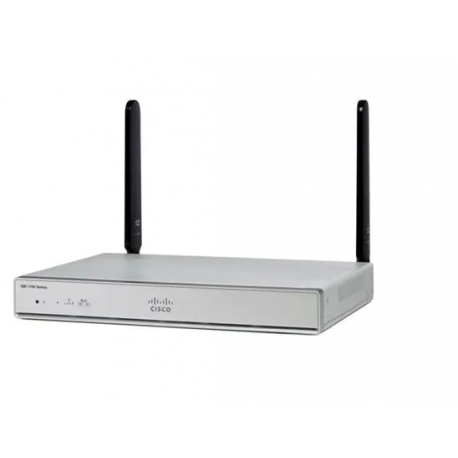

Router - 4-port switch (integrated)

Desktop

Wired

Ethernet, Fast Ethernet, Gigabit Ethernet

IPSec, PPPoE, DHCP, DNS, L2TPv3

OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP

SNMP, RMON, CLI, TR-069

DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA

RADIUS

Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)

IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13

4 GB

4 GB

Status

WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE) - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE+) - RJ-45 ¦ USB 3.0: 1 x console

External power adapter

AC 120/230 V (50/60 Hz)

0 °C

40 °C

5 - 95% (non-condensing)
