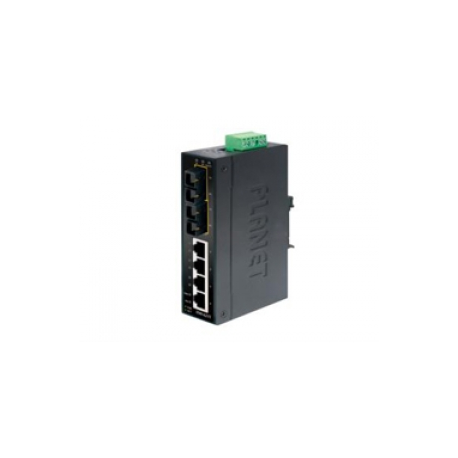

PLANET ISW-621TS15 - Switch - 4 x 10/100 + 2 x 100Base-FX - DIN rail mountable, wall-mountable
PLANET ISW-621TS15 - Switch - 4 x 10/100 + 2 x 100Base-FX - DIN rail mountable, wall-mountable
Manufacturer
•ASSMANN
Reference
•ISW-621TS15
Article
•1287715
Intrastat
•85176200
Shipping weight
•0.442 kg
Total quantity in stocks
•21
Nearest delivery
•15.06.2026
Device Type
Switch - 4 ports
Enclosure Type
DIN rail mountable, wall-mountable
Subtype
Fast Ethernet
Ports
4 x 10/100 + 2 x 100Base-FX
Optical Wave Length
1310 nm
Max Transfer Distance
15 km
Performance
Switching capacity: 1.2 Gbps
Throughput: 0.89 Mpps
MAC Address Table Size
2K entries
Features
Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Built-in Devices
Led panel
Status Indicators
Port transmission speed, power, link/activity
Interfaces
4 x 100Base-TX RJ-45
2 x 100Base-FX SC single-mode x 2
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Power Consumption Operational
16 Watt
Compliant Standards
FCC Class A certified, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30
Width
13.5 cm
Depth
9.7 cm
Height
3.2 cm
Weight
442 g
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 90%
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Storage
5 - 90% (non-condensing)
