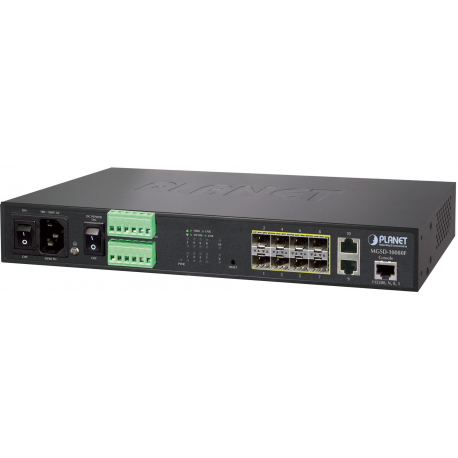

PLANET MGSD-10080F - Switch - Managed - 8 x SFP + 2 x 10/100/1000 - desktop, rack-mountable
PLANET MGSD-10080F - Switch - Managed - 8 x SFP + 2 x 10/100/1000 - desktop, rack-mountable
Manufacturer
•PLANET
Reference
•MGSD-10080F
Article
•2754075
Intrastat
•85176200
Shipping weight
•1.661 kg
Total quantity in stocks
•5
Nearest delivery
•15.06.2026
Device Type
Switch - Managed
Enclosure Type
Desktop, rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
8 x SFP + 2 x 10/100/1000
Performance
Throughput (64-byte packet size): 14.8 Mpps
Switching fabric bandwidth: 20 Gbps
Capacity
VLAN groups: 255
VLANs supported: 4094
MAC Address Table Size
8K entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH
Encryption Algorithm
SSL
Authentication Method
RADIUS
Features
Flow control, DHCP support, auto-negotiation, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), MLD snooping, reset button, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Multicast VLAN Registration (MVR), loop prevention, Class of Service (CoS), tagged VLAN, TFTP client, 802.1x authentication, DiffServ Code Point (DSCP) support, Back Pressure Support, Bridge protocol data unit (BPDU)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP)
Status Indicators
Power, alarm, link/activity
Interfaces
8 x 1000Base-X SFP
2 x 1000Base-T RJ-45
1 x console RJ-45
Power Device
Internal power supply
Installed Qty
2
Power Redundancy
Yes
Voltage Required
AC 120/230 V / DC -36 -72 V
Power Consumption Operational
11.2 Watt
Compliant Standards
FCC Part 15 A
Width
30 cm
Depth
15.5 cm
Height
4.35 cm
Weight
1.661 kg
Min Operating Temperature
-10 °C
Max Operating Temperature
60 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-10 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
