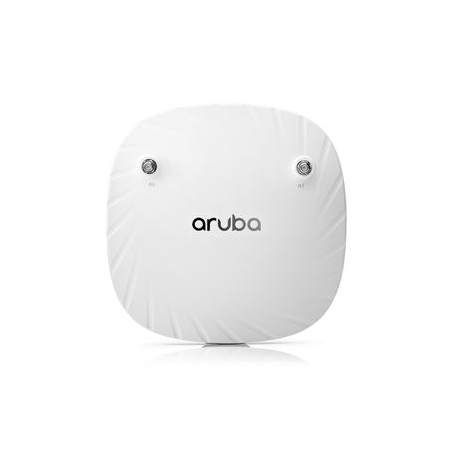

Radio access point

Indoor

16 cm

16.1 cm

3.7 cm

500 g

External

Wireless

1.2 Gbps

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)

OFDM, DSSS, OFDMA

2.4 GHz, 5 GHz

Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Aggregate throughput: 1.774 Gbps

Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8

System, status

Auto-uplink (auto MDI/MDI-X), deep inspection, Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT)

SSL, WPA, WPA2, WPA3

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6

External detachable

2

Yes

Bluetooth Low Energy (LE), Zigbee

1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 2 x aerial - RP-SMA x 2 ¦ 1 x console - micro-USB

Mounting bracket

148 years

UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2

PoE

8.9 Watt

ArubaOS, InstantOS

Limited warranty - lifetime

0 °C

50 °C

5 - 93% (non-condensing)
