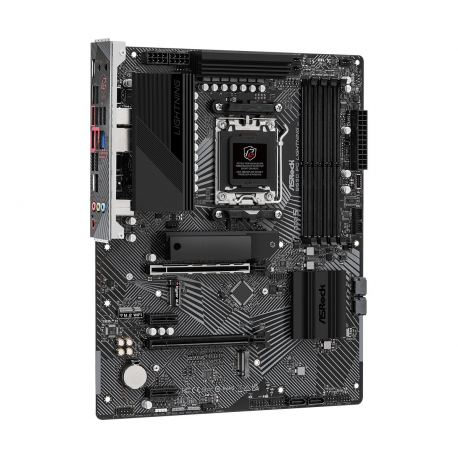

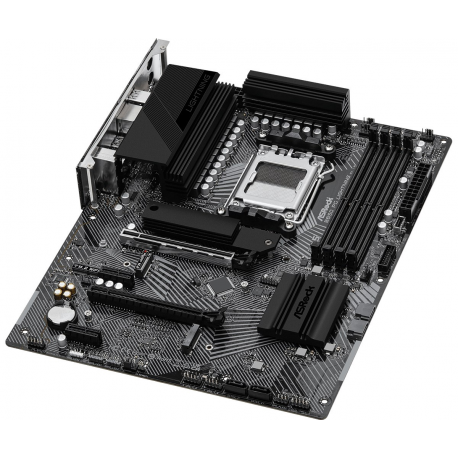

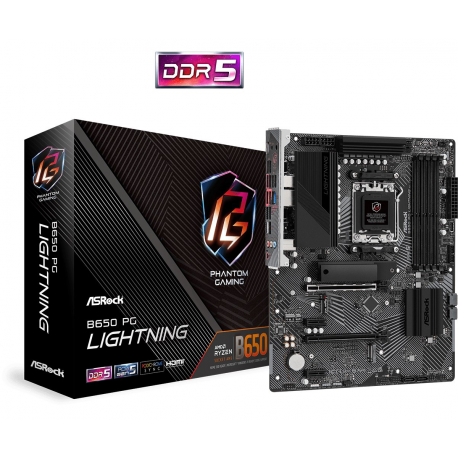

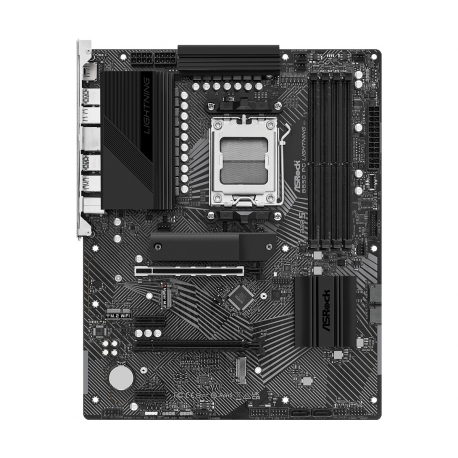

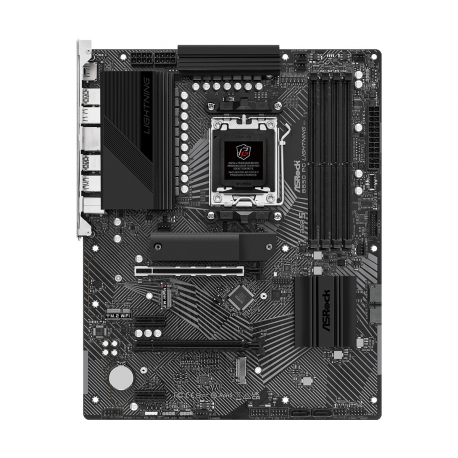

ASRock B650 PG Lightning - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASRock B650 PG Lightning - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASROCK
Reference
•90-MXBK20-A0UAYZ
Article
•3129200
Intrastat
•84717020
Total quantity in stocks
•200
Nearest delivery
•28.04.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Max Size
128 GB
Technology
DDR5
Bus Clock
6400 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Dragon RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x2 mode) ¦ 2 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 3 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces

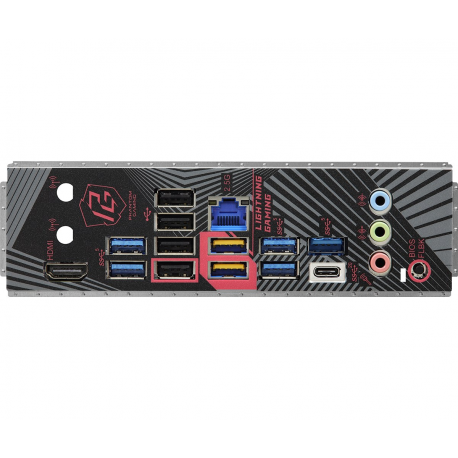

1 x USB-C 3.2 Gen2x2 ¦ 7 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x HDMI ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x speaker - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS
Hardware Features
ASRock Instant Flash, 15µ Gold Contact, 8 Layer PCB, ASRock Full HD UEFI, Water Pump Header, pre-mounted I/O shield, ASRock POST Status Checker (PSC), ASRock Auto Driver Installer, 60A Smart Power Stage, BIOS FlashBack button, 14+2+1 Phase Power Design
Included Accessories
3 x M.2 screws
Cables Included
2 x Serial ATA cable
Software Included
ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC
Compliant Standards
FCC, EuP Ready, ErP Ready, HDCP 2.3
Width
30.5 cm
Depth
24.4 cm
