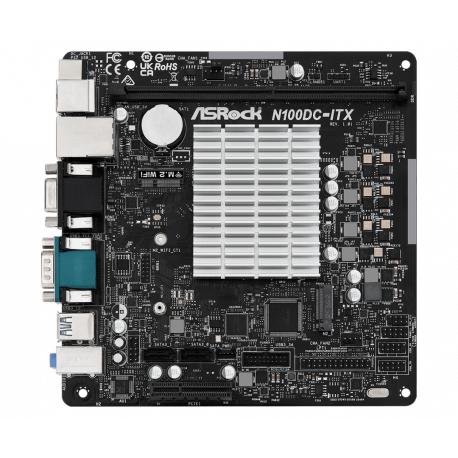

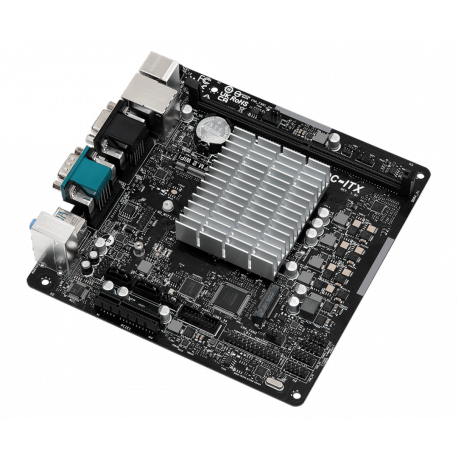

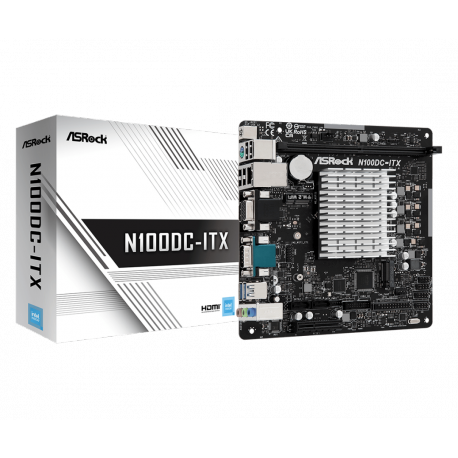

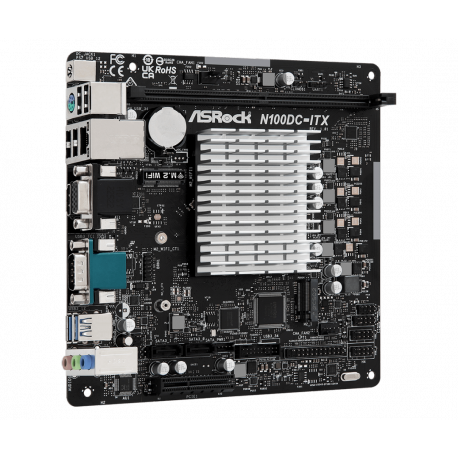

ASRock N100DC-ITX - Motherboard - mini ITX - Intel N-series N100 - Gigabit LAN - onboard graphics - HD Audio (8-channel)
ASRock N100DC-ITX - Motherboard - mini ITX - Intel N-series N100 - Gigabit LAN - onboard graphics - HD Audio (8-channel)
Manufacturer
•ASROCK
Reference
•90-MXBLM0-A0UAYZ
Article
•3374940
Intrastat
•84717020
Total quantity in stocks
•20
Nearest delivery
•28.04.2026
Product Type
Motherboard - mini ITX
Processor
Intel N-series N100 / 3.4 GHz (Quad-Core)
Max Size
32 GB
Technology
DDR4
Bus Clock
3200 MHz
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Graphics Controller
Intel HD Graphics
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8111H
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x DIMM 288-pin ¦ 1 x PCIe 3.0 x4 (x2 mode) ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 2 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2
Interfaces
1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x serial
Internal Interfaces
1 x SPI - header ¦ 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header
Power Connectors
DC-in power connector
BIOS Type
AMI
BIOS Features
UEFI BIOS
Hardware Features
ASRock Instant Flash, Intel Turbo Boost Technology, Fanless Design Heatsink, ASRock Full HD UEFI, ASRock EZ Mode, ASRock Auto Driver Installer, 2+1+1 Phase Power Design
Included Accessories
2 x M.2 screws, IO shield
Cables Included
2 x Serial ATA cable ¦ 1 x Serial ATA power cable
Software Included
ASRock A-Tuning, ASRock XFast LAN
Compliant Standards
FCC, RoHS, EuP Ready, ErP Ready, UKCA
Width
17 cm
Depth
17 cm
