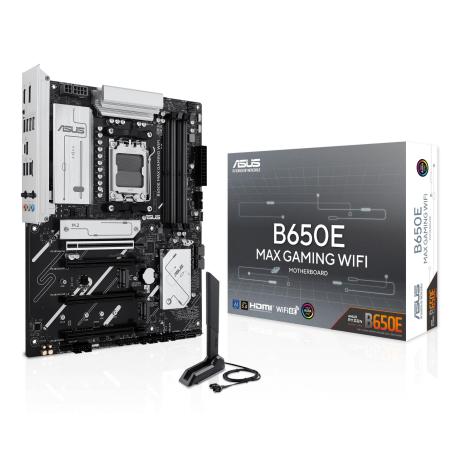

ASUS B650E MAX GAMING WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - High Definition Audio (7.1-channel)
ASUS B650E MAX GAMING WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - High Definition Audio (7.1-channel)
Manufacturer
•ASUS
Reference
•B650E MAX GAMING WIFI
Article
•4317391
Intrastat
•84717020
Total quantity in stocks
•50
Nearest delivery
•15.04.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
8000 MT/s (O.C.)
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Type
High Definition Audio (7.1-channel)
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x8/x4 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x16 (x1 mode) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 2 x aerial
Internal Interfaces
2 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header
Power Connectors
24-pin main power connector, 4-pin ATX12V connector, 8-pin ATX12V connector
BIOS Type
AMI
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS 5X Protection III, LANGuard, ASUS DIGI+ VRM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, overvoltage protection, Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot, ASUS EZ DIY, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink design, M.2 heatsink, 8+2+1 Phase Power Design
Included Accessories
ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, 3 x M.2 screws
Cables Included
2 x Serial ATA cable
Software Included
AIDA64 Extreme (60 days trial), WinRAR, ASUS CPU-Z
Width
30.5 cm
Depth
24.4 cm
