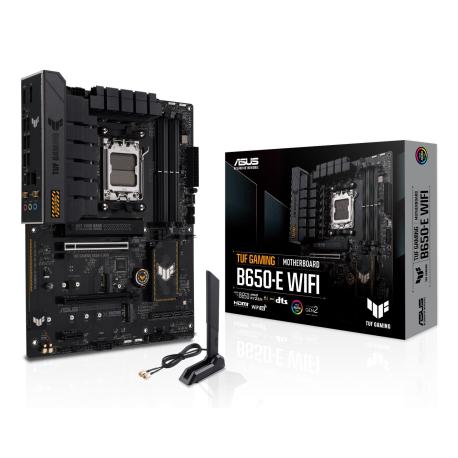

ASUS TUF GAMING B650-E WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - Wi-Fi 6E, 2.5 Gigabit LAN, Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS TUF GAMING B650-E WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - Wi-Fi 6E, 2.5 Gigabit LAN, Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASUS
Reference
•TUFGAMINGB650-EWIFI
Article
•3431196
Intrastat
•84717020
Shipping weight
•1.36 kg
Total quantity in stocks
•30
Nearest delivery
•15.04.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000 Series)
Max Size
192 GB
Technology
DDR5
Bus Clock
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, on-die ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
802.11a/b/g/n/ac/ax (Wi-Fi 6E), 2.5 Gigabit Ethernet, Gigabit Ethernet, Bluetooth 5.3
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x8/x4 mode) ¦ 1 x PCIe 4.0 x16 (x1 mode) ¦ 1 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 3 x USB 2.0 ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ Audio line-out (side surround)
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS UEFI BIOS EZ Mode, ASUS EZ Flash 3
Hardware Features
ASUS EZ DIY, CrashFree BIOS 3, ASUS OptiMem II, jack retasking, audio jack detect technology, TUF LANGuard, BIOS FlashBack button, BIOS FlashBack LED, Water Pump Header, ASUS TUF Protection, ASUS DIGI+ VRM, ESD Guards, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS ProCool, pre-mounted I/O shield, ASUS SafeDIMM, ASUS Aura Sync, ASUS TurboV EVO, 60A Power Stage, TUF 5K black metallic capacitors, TUF Chokes military-grade, AMD Precision Boost Overdrive (PBO)
Included Accessories
ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, 2 x M.2 screw package, TUF certification card
Cables Included
2 x Serial ATA cable
Software Included
Armoury Crate, Norton AntiVirus (Trial), MyAsus, DTS Audio Processing, WinRAR, ASUS TUF GAMING CPU-Z, PC Cleaner, ASUS TurboV EVO Utility, ASUS AI Suite III, ASUS Fan Xpert 4, ASUS AURA Creator
Width
30.5 cm
Depth
24.4 cm
