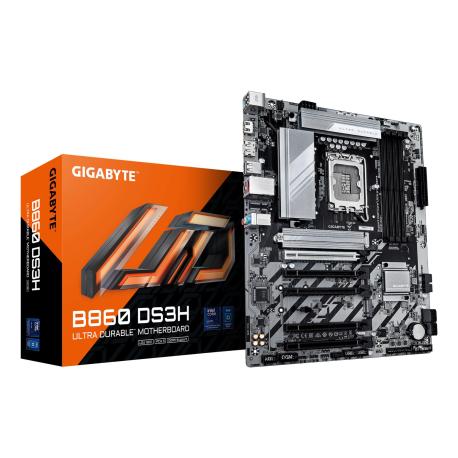

Gigabyte B860 DS3H - Motherboard - ATX - LGA1851 Socket - B860 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B860 DS3H - Motherboard - ATX - LGA1851 Socket - B860 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•B860 DS3H
Article
•4243442
Intrastat
•84717020
Total quantity in stocks
•32
Nearest delivery
•15.04.2026
Product Type
Motherboard - ATX
Chipset Type
Intel B860
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Max Size
256 GB
Technology
DDR5
Bus Clock
4533 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 2800 MHz
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Intel Extreme Memory Profiles (XMP), dual channel memory architecture
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 4 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x aerial
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring
Water cooling flow rate, temperature detection, fan speed detection, fan fail warning, system voltage, fan control
Hardware Features
8+1+2 Phase Power Design, WIFI EZ-Plug, M.2 EZ Latch plus, DIY Friendly Design, M.2 EZ Latch click, pre-mounted I/O shield, GIGABYTE Smart Fan 6, Debug LED
Included Accessories
IO shield, Wi-Fi aerial, rubber pad
Cables Included
2 x Serial ATA cable
Software Included
Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager
Width
30.5 cm
Depth
24.4 cm
