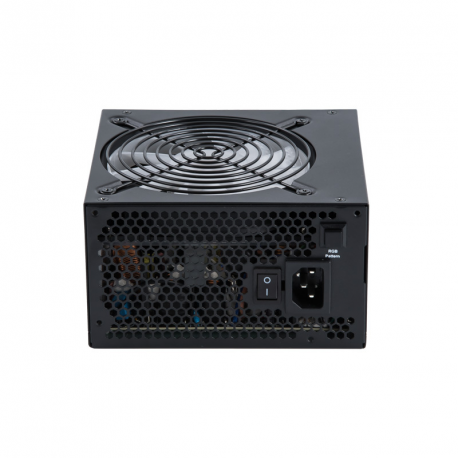

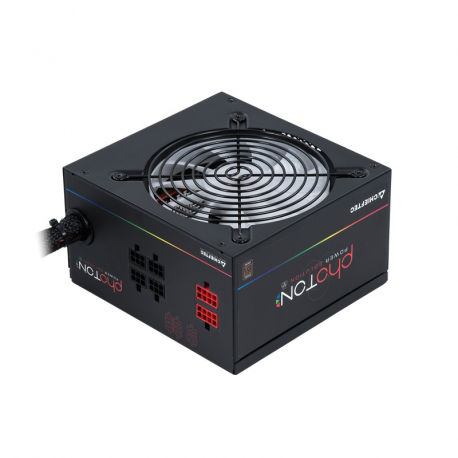

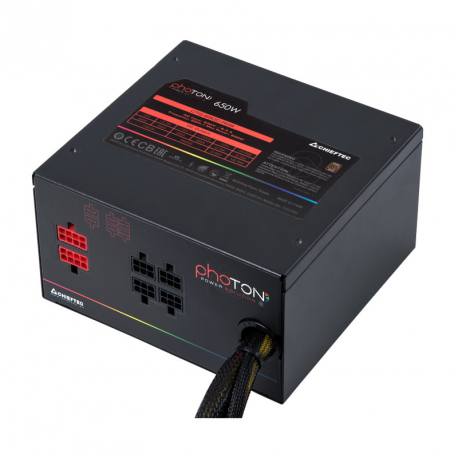

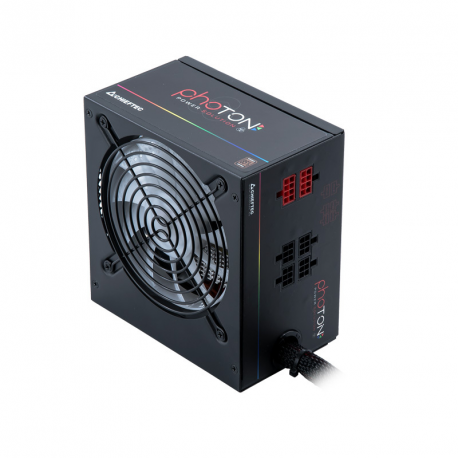

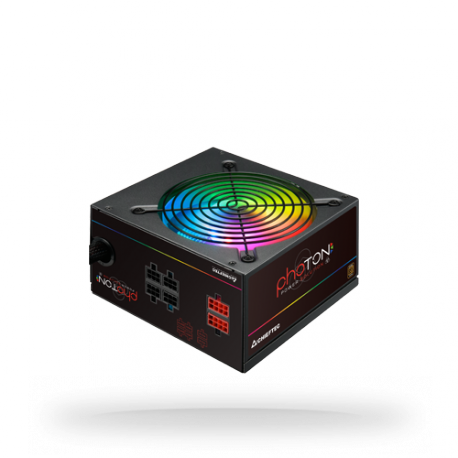

Chieftec Photon Series CTG-650C-RGB - Power supply (internal) - ATX12V 2.3/ EPS12V - AC 230 V - 650 Watt - active PFC
Chieftec Photon Series CTG-650C-RGB - Power supply (internal) - ATX12V 2.3/ EPS12V - AC 230 V - 650 Watt - active PFC
Ražotājs
•CHIEFTEC
Ražotāja kods
•CTG-650C-RGB
Artikuls
•3040067
Intrastat
•85044090
Pakas svars
•2.453 kg
Kopā pieejams (gab.)
•12
Tuvākā piegāde
•28.04.2026
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.3/ EPS12V
PSU Form Factor
ATX
Input Voltage
AC 230 V
Frequency Required
50 Hz

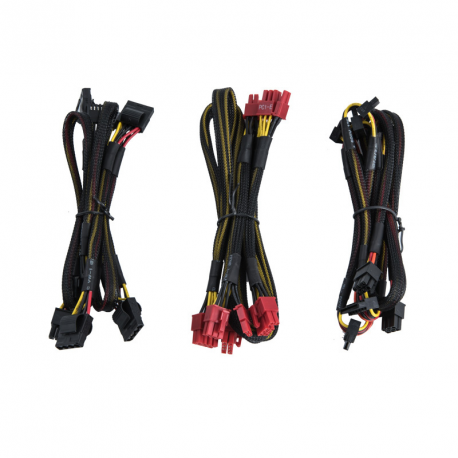

Power Output Connectors Details
1 x power 24 pin ATX
1 x power 8 pin EPS12V with detachable 4 pin ATX12V section
4 x 8 pin PCI Express power with detachable 2 pin section
4 x 4 PIN internal power
6 x 15 pin Serial ATA power
2 x 4 PIN mini-power connector

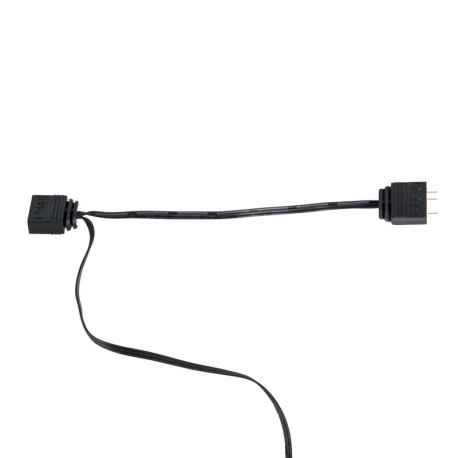

1 x RGB LED controller
Output Voltage
+3.3, +5, ±12 V
Power Capacity
650 Watt
Output Current
+5V - 22 A
+3.3V - 22 A
+12V1 - 26 A
+12V2 - 26 A
+5VSB - 2.5 A
-12V - 0.3 A
Efficiency
85%
Power Factor (PF)
0.9
Modular Cable Management
Yes
Cooling System
120 mm fan
Features
Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, surge & inrush protection, fan speed control, semi-modular, 16.8 million colours RGB fan
Compliant Standards
CB, RoHS, ErP Ready, EAC, TUV Rheinland
Service & Support
Limited warranty - 2 years
Width
15 cm
Depth
14 cm
Height
8.7 cm
Weight
2.14 kg
Shipping Weight
2.54 kg
