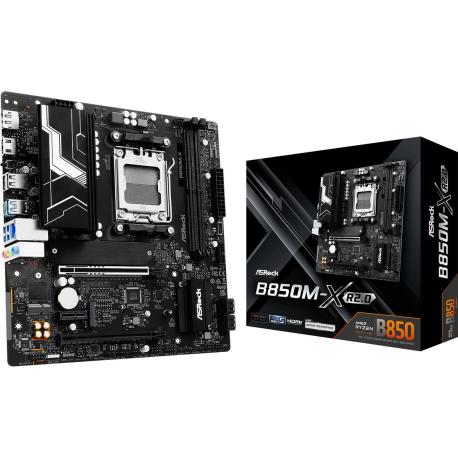

ASRock B850M-X R2.0 - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASRock B850M-X R2.0 - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASROCK
Ražotāja kods
•B850M-X R2.0
Artikuls
•4329055
Intrastat
•84717020
Product Type
Motherboard - micro ATX
Chipset Type
AMD B850
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
128 GB
Technology
DDR5
Bus Clock
8200 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
AMD EXPO technology, dual channel memory architecture
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
FCC, ErP Ready, EuP Ready
Network Controller
Dragon RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 2 x aerial - mini-jack ¦ 1 x speaker - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
Hardware Features
VRM heatsink design, chipset heatsink, aluminium heatsink design, 6+1+1 Phase Power Design, Dr.MOS MOSFET, Nahimic Audio Enhacer, ASRock Steel Slots, Surface Mount Technology (SMT), Hi-Density Power Connectors, 6 Layer PCB, ASRock Polychrome RGB, DIY Friendly Design, ASRock Auto Driver Installer, BIOS FlashBack button, ASRock POST Status Checker (PSC), ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash
Included Accessories
IO shield, 1 x M.2 screw
Cables Included
2 x Serial ATA cable
Software Included
ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC
Width
24.4 cm
Depth
22.6 cm
