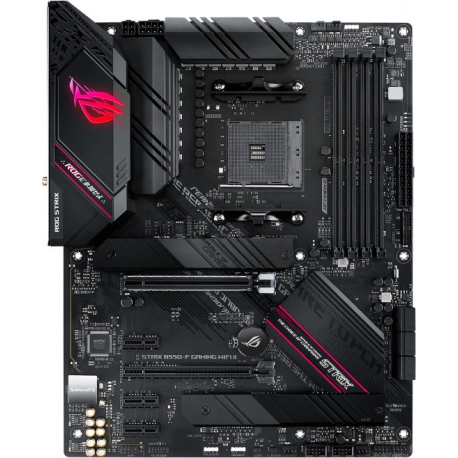

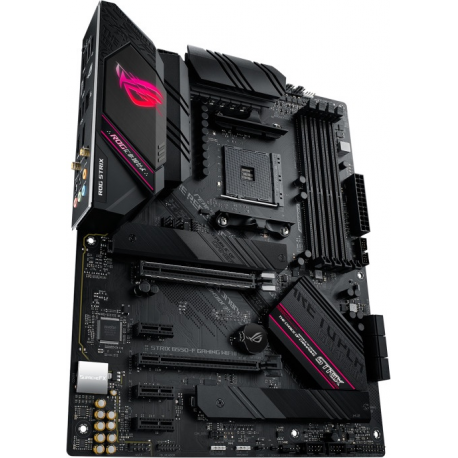

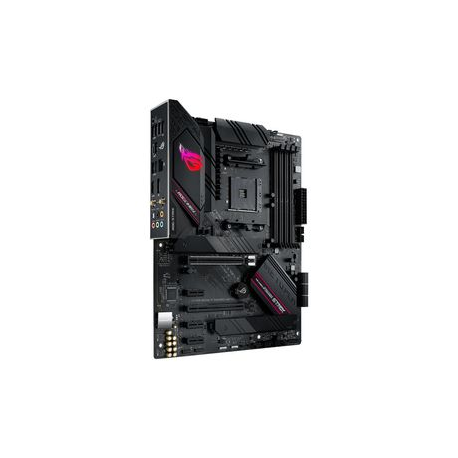

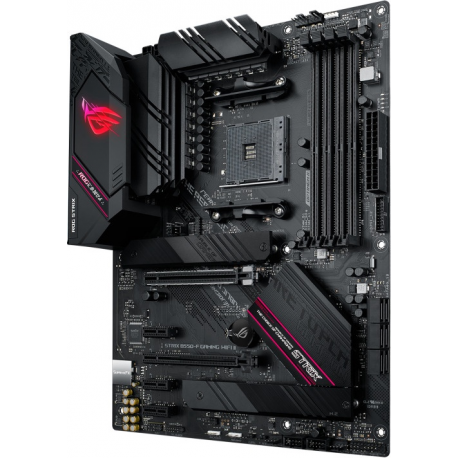

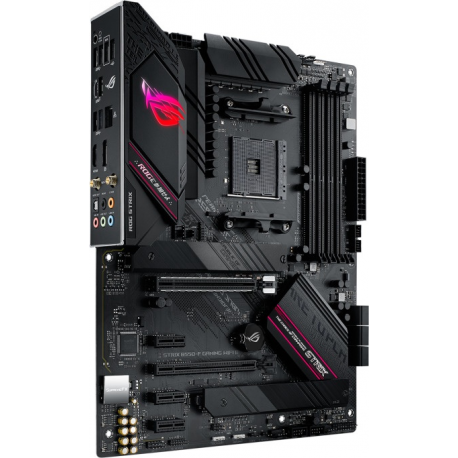

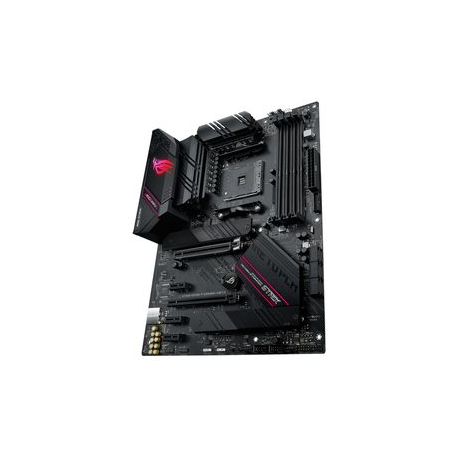

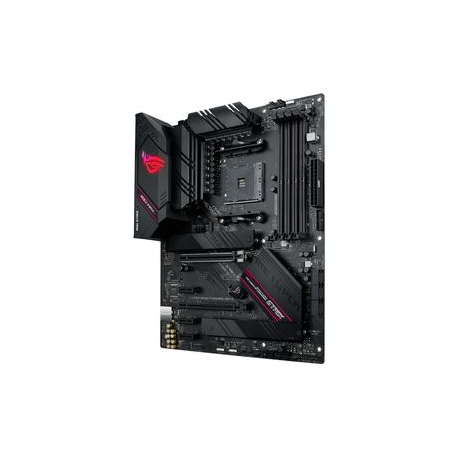

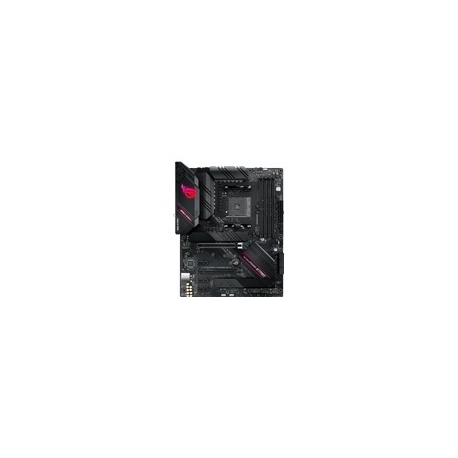

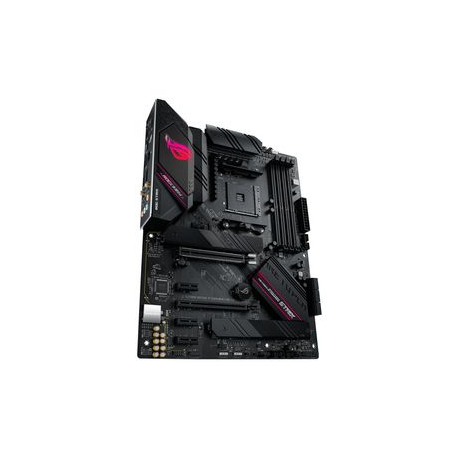

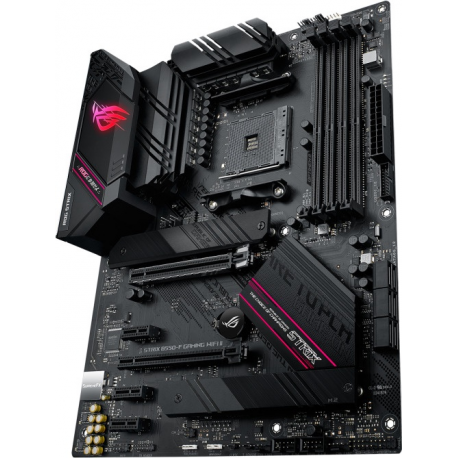

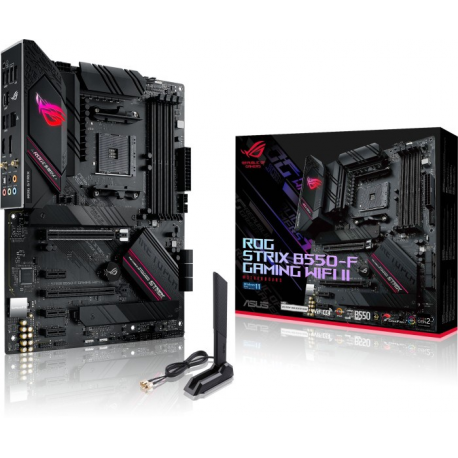

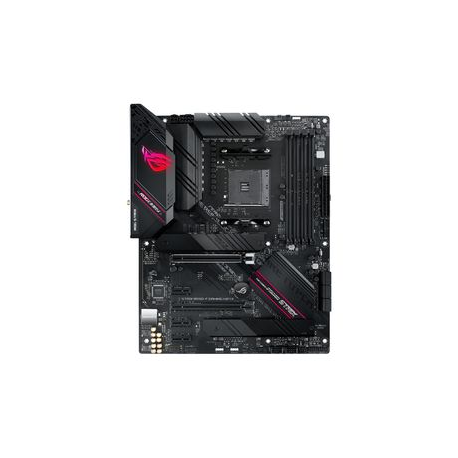

ASUS ROG STRIX B550-F GAMING WIFI II - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS ROG STRIX B550-F GAMING WIFI II - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASUS
Ražotāja kods
•90MB19V0-M0EAY0
Artikuls
•1881556
Intrastat
•84717020
Kopā pieejams (gab.)
•5
Tuvākā piegāde
•29.04.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B550
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Max Size
128 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4866 MHz (O.C.), 5100 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture
Type
HD Audio (8-channel)
Audio Codec
SupremeFX (S1220A)
Compliant Standards
High Definition Audio, DTS Sound Unbound
Network Controller
Intel I255-V
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2

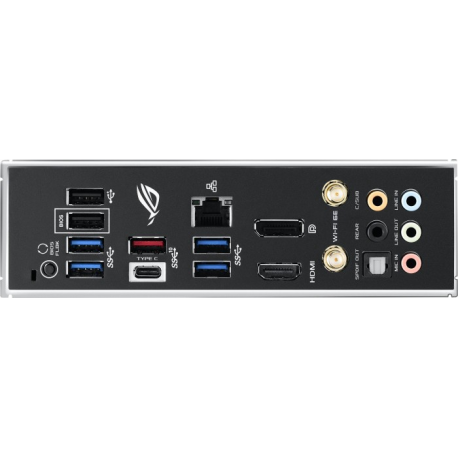

Interfaces
1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
BIOS FlashBack, UEFI BIOS
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology, Preboot eXecution Environment (PXE), ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, ASUS Aura Sync, GameFirst VI
Included Accessories
External antenna, cable ties, 1 x M.2 screw, ROG fan stickers, ROG thank you card, RGB Addressable LED extension cable, rubber pad, ROG key chain
Cables Included
4 x Serial ATA cable
Software Included
ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Overwolf, ASUS EZ Flash 3, DAEMON Tools, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer, Norton AntiVirus (Trial), AIDA64 Extreme (60 days trial)
Width
30.5 cm
Depth
24.4 cm
