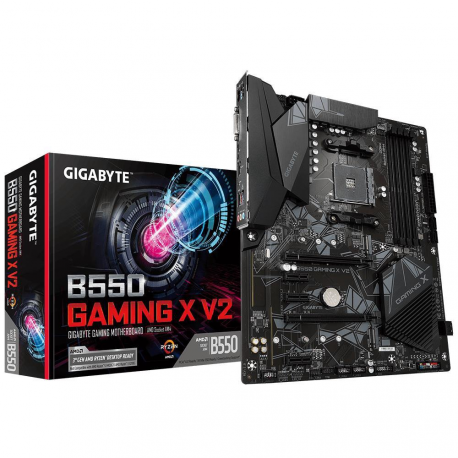

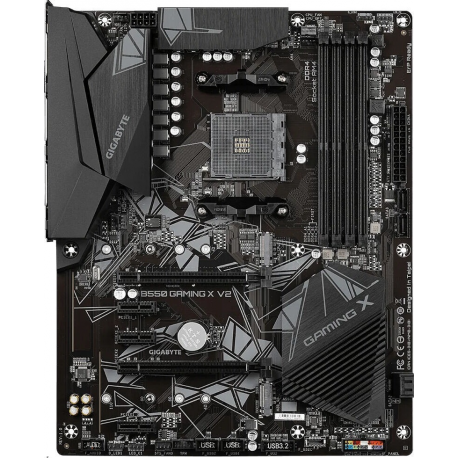

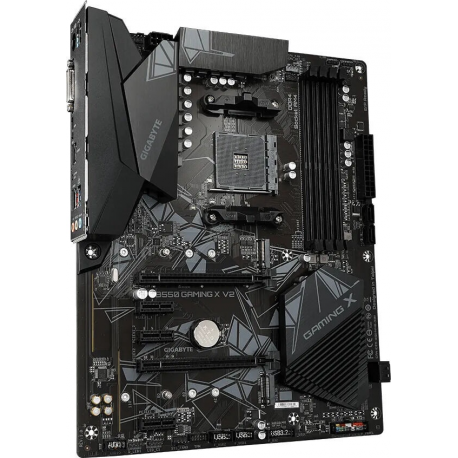

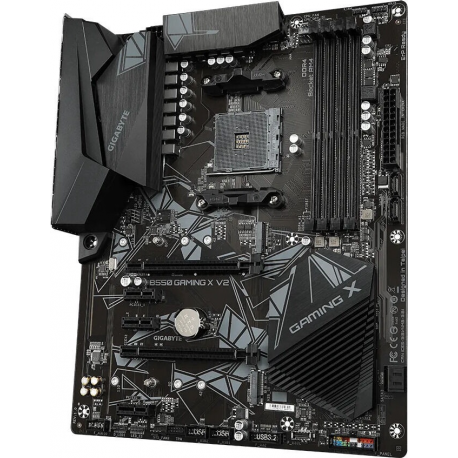

Gigabyte B550 GAMING X V2 - 1.3 - motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B550 GAMING X V2 - 1.3 - motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•B550GAMINGXV21.3
Artikuls
•3045556
Intrastat
•84717020
Kopā pieejams (gab.)
•22
Tuvākā piegāde
•15.04.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B550
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Max Size
128 GB
Technology
DDR4
Bus Clock
2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4733 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x2 mode) ¦ 3 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2
Interfaces

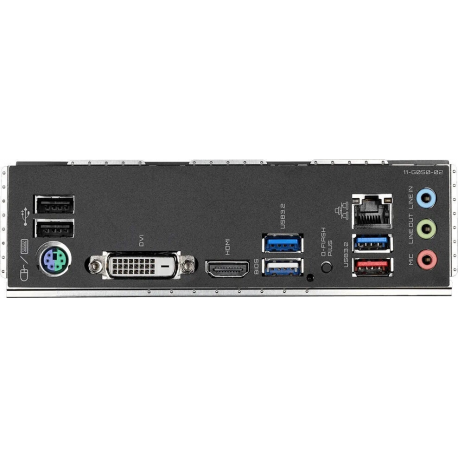

1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 2 x USB 2.0 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring
Chassis fan tachometer, system voltage, water cooling flow rate, fan fail warning, fan speed detection, temperature detection
Hardware Features
Q-Flash, Q-Flash Plus, 10+3 Phase Power Design, Ultra Durable PCIe Armor, GIGABYTE Smart Fan 5, Anti-Sulfur Design, Solid Pin Power Connectors, pre-mounted I/O shield, High-end Audio Capacitors, RGB FUSION 2.0, AMD StoreMI technology, MOSFET Heatsink, Audio Noise Guard, GIGABYTE Double Locking Bracket
Cables Included
2 x Serial ATA cable
Software Included
@BIOS, EasyTune, Xpress Install, GIGABYTE App Center, Norton Internet Security (OEM Version)
Compliant Standards
HDCP 2.3
Width
30.5 cm
Depth
24.4 cm
