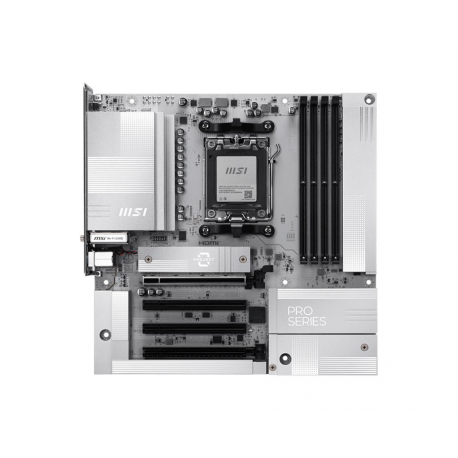

MSI PRO B850M-A WIFI PZ - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1 - 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
MSI PRO B850M-A WIFI PZ - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1 - 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•MSI
Ražotāja kods
•PRO B850M-A WIFI PZ
Artikuls
•4500884
Intrastat
•84717020
Kopā pieejams (gab.)
•9
Tuvākā piegāde
•16.04.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD B850
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
4800 MT/s, 5600 MT/s, 5600 MT/s (O.C.), 6000 MT/s (O.C.), 6400 MT/s (O.C.), 8200 MT/s (O.C.)
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
AMD EXPO technology, dual channel memory architecture
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8126VB
Network Interfaces
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 3.0 x16 (x1 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
Interfaces
1 x HDMI ¦ 2 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x DisplayPort ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 2 x aerial
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
MSI ClickBIOS
Hardware Features
MSI EZ DIY, 8+2+1 Phase Power Design, MSI EZ OC, Extended Heatsink Design, M.2 Shield FROZR, pre-mounted I/O shield, MSI AI Engine, MSI AI LAN Manager, Frozr AI Cooling, 6 Layer PCB, 2oz Copper PCB, overvoltage protection, MSI Memory Boost, transient voltage suppressors, MSI Stainless Steel Back I/O, overcurrent protection, MSI Steel Armor, MSI Audio Boost, MSI Mystic Light
Included Accessories
EZ Wi-Fi antenna, 2 x EZ M.2 clip II, EZ M.2 clip II remover
Cables Included
1 x Serial ATA cable
Software Included
MSI Center
Width
24.384 cm
Depth
24.384 cm
