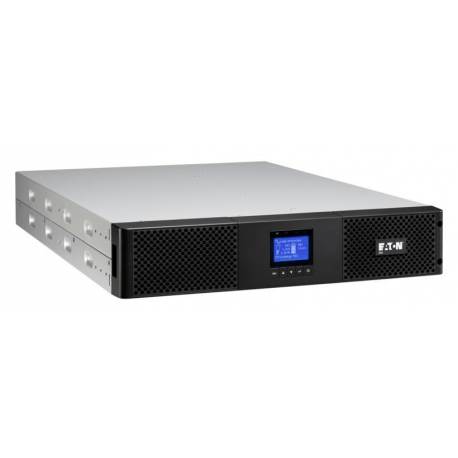

Eaton 9SX 9SX1500IR - UPS (rack-mountable) - AC 200 / 208 / 220 / 230 / 240 V - 1350 Watt - 1500 VA - RS-232, USB - output connectors: 6 - PFC - 2U - 19"
Eaton 9SX 9SX1500IR - UPS (rack-mountable) - AC 200 / 208 / 220 / 230 / 240 V - 1350 Watt - 1500 VA - RS-232, USB - output connectors: 6 - PFC - 2U - 19"
Ražotājs
•EATON
Ražotāja kods
•9SX1500IR
Artikuls
•1545812
Intrastat
•84734080
Pakas svars
•24.06 kg
Kopā pieejams (gab.)
•14
Tuvākā piegāde
•28.04.2026
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable
Height (Rack Units)
2U
Rack Size
19"
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 120 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Input Connectors
1 x power IEC 60320 C14 10A
Power Output Connectors Details
6 x power IEC 60320 C13 10A
Output Voltage
AC 200/208/220/230/240 V 50/60 Hz
Power Capacity
1350 Watt / 1500 VA
Power Factor (PF)
0.9
Type
Expandable
Run Time (Up To)
12 min at 800 Watts
Remote Management Interface
RS-232, USB

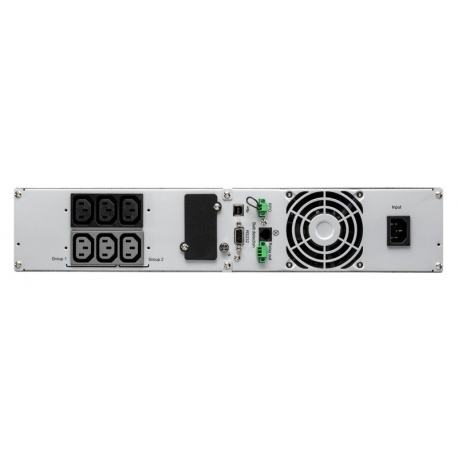

Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ EPO (emergency power off) - mini terminal block ¦ Relay output - mini terminal block
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Features
Advance Battery Management (ABM), LCD display, deep discharge protection, automatic self-test, temperature-compensated battery charging, 3-stage charging, double conversion, power measuring
Compliant Standards
FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-3, CSA C22.2, IEC 62040-2, cULus, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
43 dB
Width
43.8 cm
Depth
43.8 cm
Height
8.65 cm
Weight
18.4 kg
