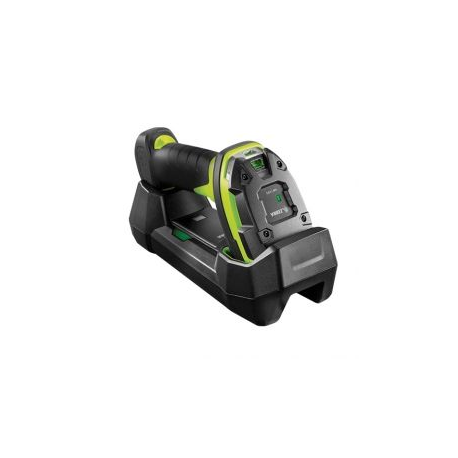

Zebra DS3678-HP - USB Kit - barcode scanner - portable - 2D imager - decoded - Bluetooth 4.0
Zebra DS3678-HP - USB Kit - barcode scanner - portable - 2D imager - decoded - Bluetooth 4.0
Ražotājs
•ZEBRA
Ražotāja kods
•DS3678-HP3U42A2SKW
Artikuls
•1856871
Intrastat
•84716070
Pakas svars
•1.784 kg
Ražotāja cena
•1607.11 €
Kopā pieejams (gab.)
•7
Tuvākā piegāde
•28.04.2026
Type
Barcode scanner - portable
Colour
Industrial green
Interface Type
Bluetooth 4.0
Minimum Bar Width
5 mil
Scan Element Type
2D imager - white LED
Sensor Resolution
1280 x 960
Light Source Wave Length
655 nm
Max Working Distance
203.2 cm
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, MICR E-13B, Micro QR code, China Han Xin Code
TTL Decoding
Decoded
Connectivity Technology
Wireless
OK Notification
Beeper, LED indicator, vibration
Features
Rugged, Human Interface Device Profile (HID), Serial Port Profile (SPP), 25 kV ESD protection (air discharge), 10 kV ESD protection (direct discharge), 10 kV ESD protection (indirect discharge)
Wireless Connectivity
Bluetooth 4.0 LE
Interfaces
1 x USB - Type A
Included Accessories
Cradle
Cables Included
1 x USB cable - external - 2.1 m
Compliant Standards
UL, VDE, Bluetooth Class 1, EN 61000-4-2, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, IP65, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B
Power Device
Power adapter
Battery
1 x Lithium Ion
Width
7.6 cm
Depth
14.2 cm
Height
18.5 cm
Weight
411 g
Service & Support
Limited warranty - parts and labour - 3 years ¦ Limited warranty - battery - 1 year
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
2.4 m to concrete
