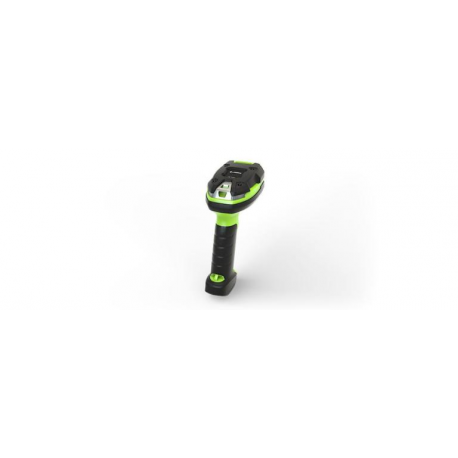

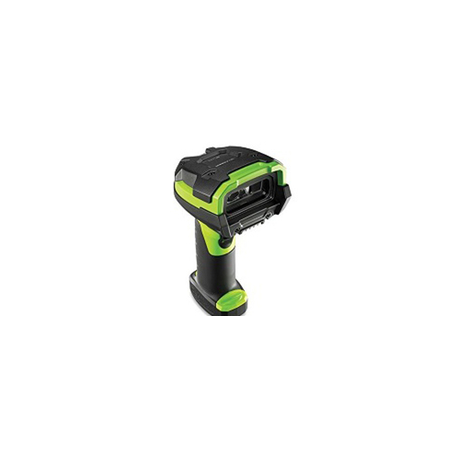

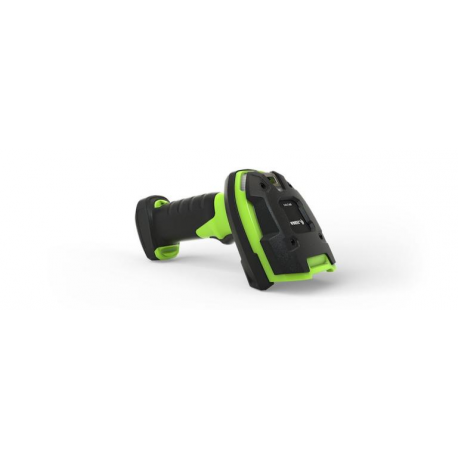

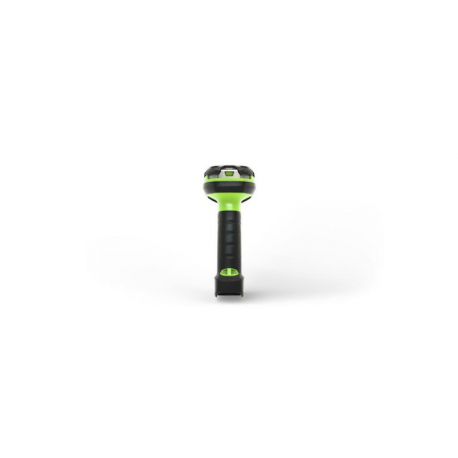

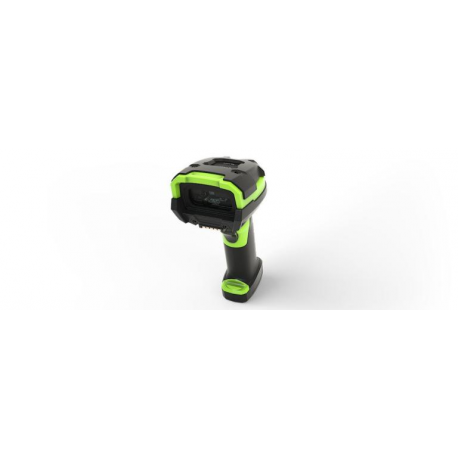

Zebra LI3608-ER - Barcode scanner - handheld - linear imager - decoded - interface cable required
Zebra LI3608-ER - Barcode scanner - handheld - linear imager - decoded - interface cable required
Ražotājs
•ZEBRA
Ražotāja kods
•LI3608-ER20003VZWW
Artikuls
•1528929
Intrastat
•84716070
Pakas svars
•0.416 kg
Ražotāja cena
•739.89 €
Kopā pieejams (gab.)
•16
Tuvākā piegāde
•22.04.2026
Handheld scanner, industry, 1D, linear imager, extended range, multi-interface (RS232, KBW, USB), protection class: IP67, order separately: interface cable, colour: black, green
Type
Barcode scanner - handheld
Colour
Industrial green
Interface Type
Interface cable required
Minimum Bar Width
7.5 mil
Scan Element Type
Linear imager
Light Source Wave Length
660 nm
Max Working Distance
1981.2 cm
Skew (Degrees)
65
Pitch (Degrees)
65
Print Contrast Signal (PCS)
25%
Decode Capability
EAN/JAN, Code 93, Code 39, NW-7, GS1 DataBar, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, Korean 3 of 5, Base 32
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator, vibration
Features
Rugged
Compliant Standards
ICES-003 Class B, EN 61000-4-2, EN 61000-6-2, RoHS, UL 60950-1, IP67, IP65, IEC 60601-1-2:2007, EN 50581:2012, EN 60601-1-2:2007, EN 61000-3-3:2013, EN 55024:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, FCC CFR47 Part 15 B Class B, CAN/CSA-C22.2 No. 60960-1-07, EN 55022:2010+AC:2011 Class B, EN 61000-3-2:2006+A1:2009+A2:2009 Class B, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Electric Current Required
250 mA (operating), 110 mA (standby)
Width
7.6 cm
Depth
13.2 cm
Height
18.5 cm
Weight
327 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-30 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Zebra - Power cable - 12 V - 1.5 AKods: CBL-36-453A-01
Zebra - Data cable - USB (M) - 12 V - 2.13 m - moldedKods: CBA-U42-S07PAR
Zebra - Serial cable - DB-9 (F) to DB-9 (F) - 2 mKods: CBA-R07-S07PAR
Zebra - Power adapter - AC 100-240 V - 50 WattKods: PWR-BGA12V50W0WW
Zebra - Power cableKods: CBL-36-452A-01
Zebra - Data cable - USB (M) locking - 3.66 m - coiled - for Zebra VC70N0Kods: CBA-UF7-C12ZAR
Zebra - Serial cable - DB-9 (M) - ± 12 V - 2.8 m - coiledKods: CBA-R73-C09ZAR
Zebra - Barcode reader battery - for Zebra DS3608, DS3678, LI3608, LI3678Kods: BTRY-36IAB0E-00
Zebra - Serial cable - DB-9 (F) to RJ-45 (10 pin) (M) - 12 V - 4.6 mKods: CBA-R21-S15PAR
Zebra - Power cable - USB (M) - 3.66 m - coiledKods: CBA-UF8-C12ZAR
Zebra - Power / data cable - USB, DB-9 - 2.74 m - coiled - for Zebra DS3608-ERKods: CBA-UF4-C09ZAR
Zebra - USB / serial cable - 2.7 m - coiledKods: CBA-UF5-C09ZAR
Zebra - Data cable - 4.57 m - for Zebra DS7708-SRKods: CBA-U45-S15ZAR
Zebra - Serial cable - 2.74 m - coiled - for Zebra ForkLift CradleKods: CBA-RF4-C09ZBR
Zebra - Network adapter - Ethernet - for Zebra DS3608, DS3678, LI3608, LI3678Kods: EA3600-T1CP-00
