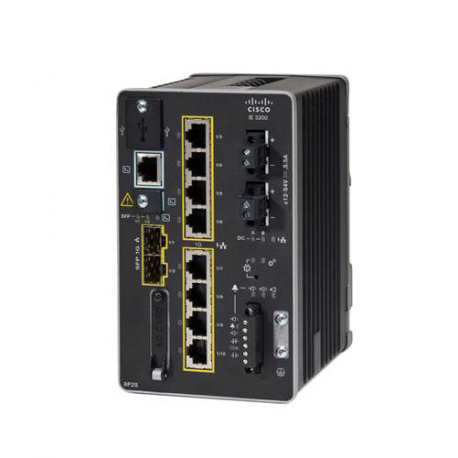

Cisco Catalyst IE3200 Rugged Series - Network Essentials - switch - Managed - 8 x 10 / 100 / 1000 (PoE+) + 2 x Gigabit SFP - DIN rail mountable - PoE+ (240 W) - DC power
Cisco Catalyst IE3200 Rugged Series - Network Essentials - switch - Managed - 8 x 10 / 100 / 1000 (PoE+) + 2 x Gigabit SFP - DIN rail mountable - PoE+ (240 W) - DC power
Ražotājs
•CISCO
Ražotāja kods
•IE-3200-8P2S-E
Artikuls
•3139188
Intrastat
•85176200
Pakas svars
•1.7 kg
Kopā pieejams (gab.)
•44
Tuvākā piegāde
•29.04.2026
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
ARP inspection
Y
System event log
Y
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
SFP module slots quantity
2
Console port
RJ-45
Compatible memory cards
SD
Networking standards
IEEE 802.1x, IEEE 802.3
10G support
N
Broadcast storm control
Y
Rate limiting
Y
Spanning tree protocol
Y
VLAN support
Y
Virtual LAN features
VLAN Identifier ( VLAN ID)
Number of VLANs
256
MAC address table
8000 entries
Number of queues
8
DHCP features
DHCP server, DHCP snooping
Access Control List (ACL)
Y
Access Control List (ACL) rules
1500
IGMP snooping
Y
IGMP entries
1000
Security algorithms
SNMP, SNMPv3, SSH
MAC address filtering
Y
BPDU filtering/protection
Y
Authentication
Guest VLAN, MAC-based authentication
Multicast support
Y
Product colour
Black
International Protection (IP) code
IP30
DIN rail mounting
Y
Electromagnetic compatibility
FCC 47 CFR 15 B A, EN 55032/CISPR 32 A, VCCI A, AS/NZS CISPR 32 A, CISPR 11 A, ICES 003 A, CNS 13438 A, KN 32 A, EN 300 386
Certification
UL/CSA 60950-1,CB to IEC 60950-1, UL/CSA 62368-1, CB to IEC 62368-1, UL/CSA 61010-2-201, CB IEC/EN 61010-2-201, UL121201(l, Div 2, A-D), SA 213 (l, Div 2, A-D), UL/CSA 60079-0, -15 (l, 2, Gc/IIC), IEC 60079-0, -15 IECEx (l, 2, Gc/IIC), EN 60079-0, -15 ATEX (l, 2, Gc/IIC), EN 61000-6-2
EN 61000-6-4
EN 61000-6-1
EN 61326-1
IEEE 1613
EN/IEC 61850-3
EN50121-4
ODVA
Memory type
DRAM
Internal memory
2048 MB
Flash memory
1500 MB
Dying Gasp
Y
Mean time between failures (MTBF)
613125 h
Harmonized System (HS) code
85176990
Redundant power supply (RPS) support
Y
DC input voltage
9.6 - 60 V
Input current
5.5 A
Power consumption (typical)
35 W
Power over Ethernet (PoE)
Y
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
240 W
Operating temperature (T-T)
-40 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Width
91.4 mm
Depth
134.6 mm
Height
152.4 mm
Weight
1.7 kg
