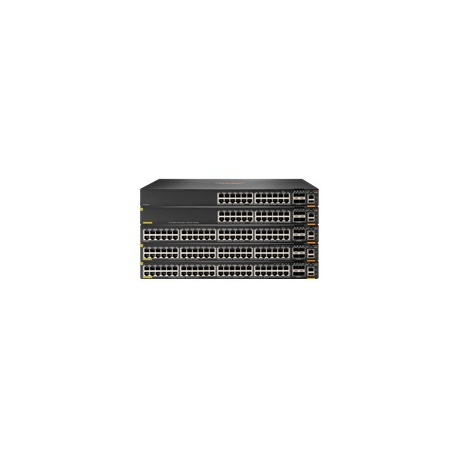

Switch - 48 ports - L3 - Managed - stackable

Front and side to back rack-mountable 1U

Gigabit Ethernet

36 x 10/100/1000 (4PPoE) + 12 x 1/2.5/5GBase-T (4PPoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)

4PPoE

1440 W

Switching capacity: 272 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Packet buffer size: 8 MB ¦ Stacking bandwidth: 40 Gbps

Switched virtual interfaces (SVIs): 128 ¦ IPv4 host table capacity: 8000 ¦ IPv6 host table capacity: 8000 ¦ IPv4 routes (Unicast): 2000 ¦ IPv6 routes (Unicast): 2000 ¦ IGMP groups: 1000 ¦ MLD groups: 1000 ¦ IPv4 ACL entries (ingress): 1000 ¦ IPv6 ACL entries (ingress): 1000 ¦ MAC ACL entries (ingress): 1000 ¦ IPv4 ACL entries (egress): 512 ¦ IPv6 ACL entries (egress): 256 ¦ MAC ACL entries (egress): 512

16000 entries

9220 bytes

8

OSPF, RIP-2, OSPFv2, OSPFv3, ECMP

SNMP, SNMP 3, SNMP 2c, CLI

MD5, SSL, FIPS 140-2

RADIUS, TACACS+

Layer 2 switching, ARP support, DiffServ support, Virtual Route Redundancy Protocol (VRRP) support, Quality of Service (QoS), Trusted Platform Module (TPM), Equal-Cost Multipath (ECMP), Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Management Information Base (MIB), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), Source-Specific Multicast (SSM), Network Timing Protocol (NTP), security slot (Kensington security lock compatible), Rapid PVST+ (RPVST+), DNS support, IGMP support, Unidirectional Link Detection (UDLD), Automatic Media-Dependent Interface Crossover (MDIX), web GUI management portal, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS)

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bt

1 x ARM: 1.8 GHz

8 GB DDR4 SDRAM

16 GB

36 x 10/100/1000 Base-T (4PPoE) RJ-45 PoE Class 6 ¦ 12 x 1/2.5/5GBase-T (4PPoE) RJ-45 PoE Class 6 ¦ 4 x 1/10Gbit LAN SFP+ 2x LRM; 2x LRM/MACSec 256 ¦ 1 x console RJ-45 ¦ 1 x management RJ-45 ¦ 1 x console (USB) Type C ¦ 1 x USB Type A host

Internal power supply (not installed)

2

AC 100-120/200-240 V (50/60 Hz)

74 Watt

59 Watt

Rack kit (2 post), fan tray (field replaceable, hotswappable)

EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, RoHS, Laser Class 1, WEEE, VCCI Class A, IEC 60950-1:2005 + A1:2009 + A2:2013, CISPR 35, EN 60825-1:2014, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, UL 62368-1 Third Edition, EN 61000-3-3:2013/A1:2019, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, EN 62368-1:2014+A11:2017 2nd Ed., EN 62368-1:2020+A11:2020 3rd Ed., BS EN 62368-1:2014 + A11:2017 2nd Ed, BS EN 62368-1:2020 + A11:2020 3rd Ed, IEC 62368-1:2014 2nd Ed, CNS 15598-1:2020, CISPR 32 Ed 2.1: 2019 Class A, CISPR 35 Ed 1.0:2016, CSA 22.2 No.62368-1 Third Edition, EN 55032:2015 + A11:2020 Class A, FCC 47 CFR part 15B:2014 Class A

BTO

AOS-CX

44.2 cm

38.5 cm

4.4 cm

6.31 kg

Limited warranty - lifetime

0 °C

45 °C

15 - 95% (non-condensing)

-40 °C

70 °C

15 - 90% (non-condensing)
