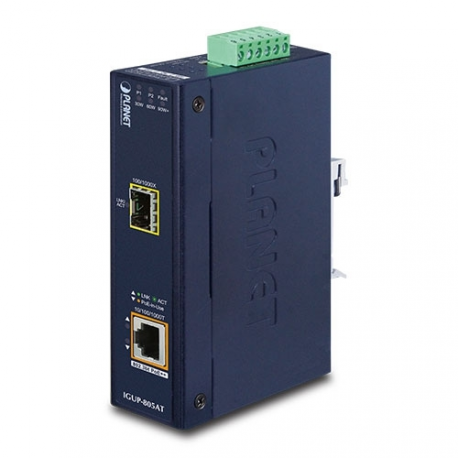

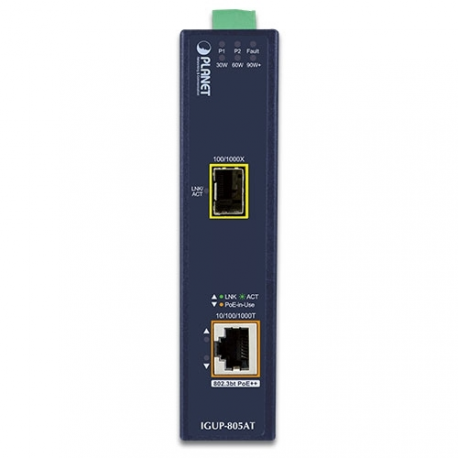

PLANET IGUP-805AT - Fibre media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X - SFP (mini-GBIC) / RJ-45
PLANET IGUP-805AT - Fibre media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X - SFP (mini-GBIC) / RJ-45
Ražotājs
•PLANET
Ražotāja kods
•IGUP-805AT
Artikuls
•3009811
Intrastat
•85176990
Pakas svars
•0.484 kg
Kopā pieejams (gab.)
•1
Tuvākā piegāde
•28.04.2026
Device Type
Fibre media converter
Form Factor
Wall / DIN rail mountable
Connectivity Technology
Wired
Cabling Type
10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate
1 Gbps
Status Indicators
Alarm, PoE, link/activity, fault, fibre, power 1, power 2
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, surge protection, built-in DIP switch, 6KV ESD Protector, metal housing, Back Pressure Support, 9 KB Jumbo Frame, reverse polarity protection, dual power input
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
Interfaces
1 x Ethernet 100Base-X/1000Base-X - SFP female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++) - RJ-45 - 95 W
Compliant Standards
Plug and Play, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IP30, IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Power Over Ethernet (PoE)
PoE++

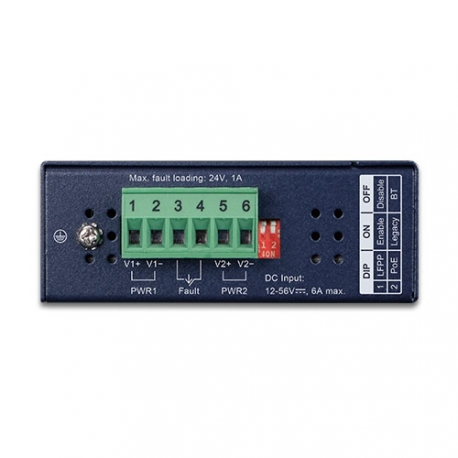

Voltage Required
DC 12 - 56 V
Width
3.2 cm
Depth
8.7 cm
Height
13.5 cm
Weight
484 g
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 90% (non-condensing)
