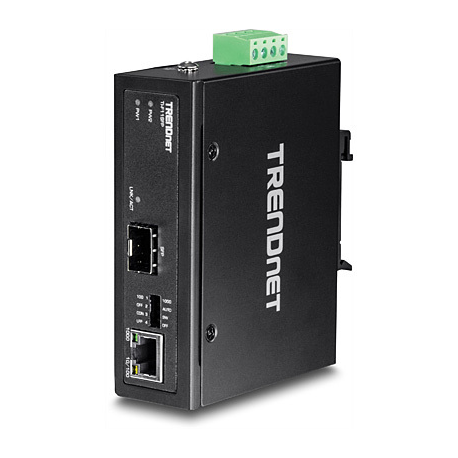

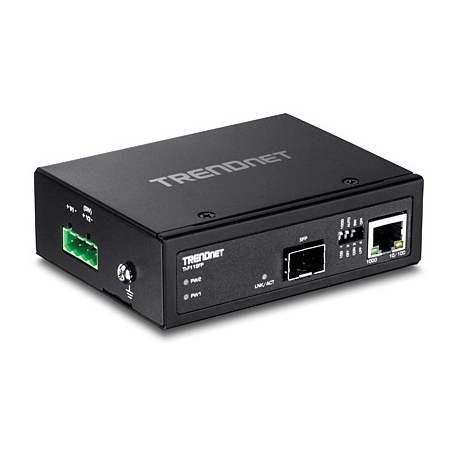

TRENDnet TI-F11SFP - Media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T - RJ-45 / SFP (mini-GBIC)
TRENDnet TI-F11SFP - Media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T - RJ-45 / SFP (mini-GBIC)
Ražotājs
•TRENDNET
Ražotāja kods
•TI-F11SFP
Artikuls
•3006122
Intrastat
•85176990
Pakas svars
•0.152 kg
Kopā pieejams (gab.)
•20
Tuvākā piegāde
•28.04.2026
Device Type
Media converter
Form Factor
DIN rail mountable
Connectivity Technology
Wired
Cabling Type
10Base-T, 100Base-TX, 1000Base-T
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate
2 Gbps
Features
Auto-negotiation, store and forward, half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), wall mountable, Jumbo Frames support, built-in DIP switch, 8KV ESD Protector, 6KV Surge protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Interfaces
1 x Ethernet 1000Base-T - RJ-45 female
1 x - SFP
Included Accessories

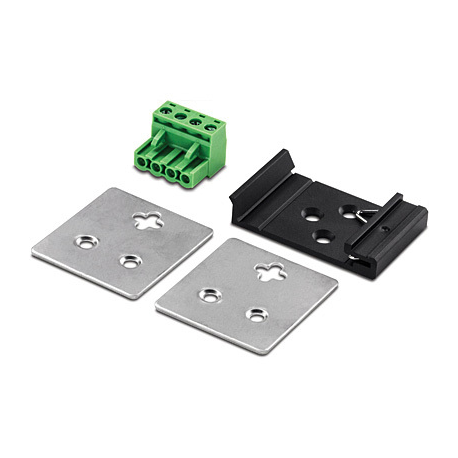

DIN-rail mounting kit, wall mounting kit, removable terminal block
MTBF
510,304 hours
Compliant Standards
EN55022, EN55024, RoHS, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30
Power Device
External power adapter (not included)
Power Redundancy
Yes
Max Supported Qty
2
Voltage Required
DC 12 - 56 V
Power Consumption Operational
3 Watt
Width
11.3 cm
Depth
3.1 cm
Height
8.2 cm
Weight
152 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
0 - 95% (non-condensing)
